Workbench

Workbench is the UI-Core of the HubAI app. It provides the basic UI components and services that are used by the app.

Core Components​

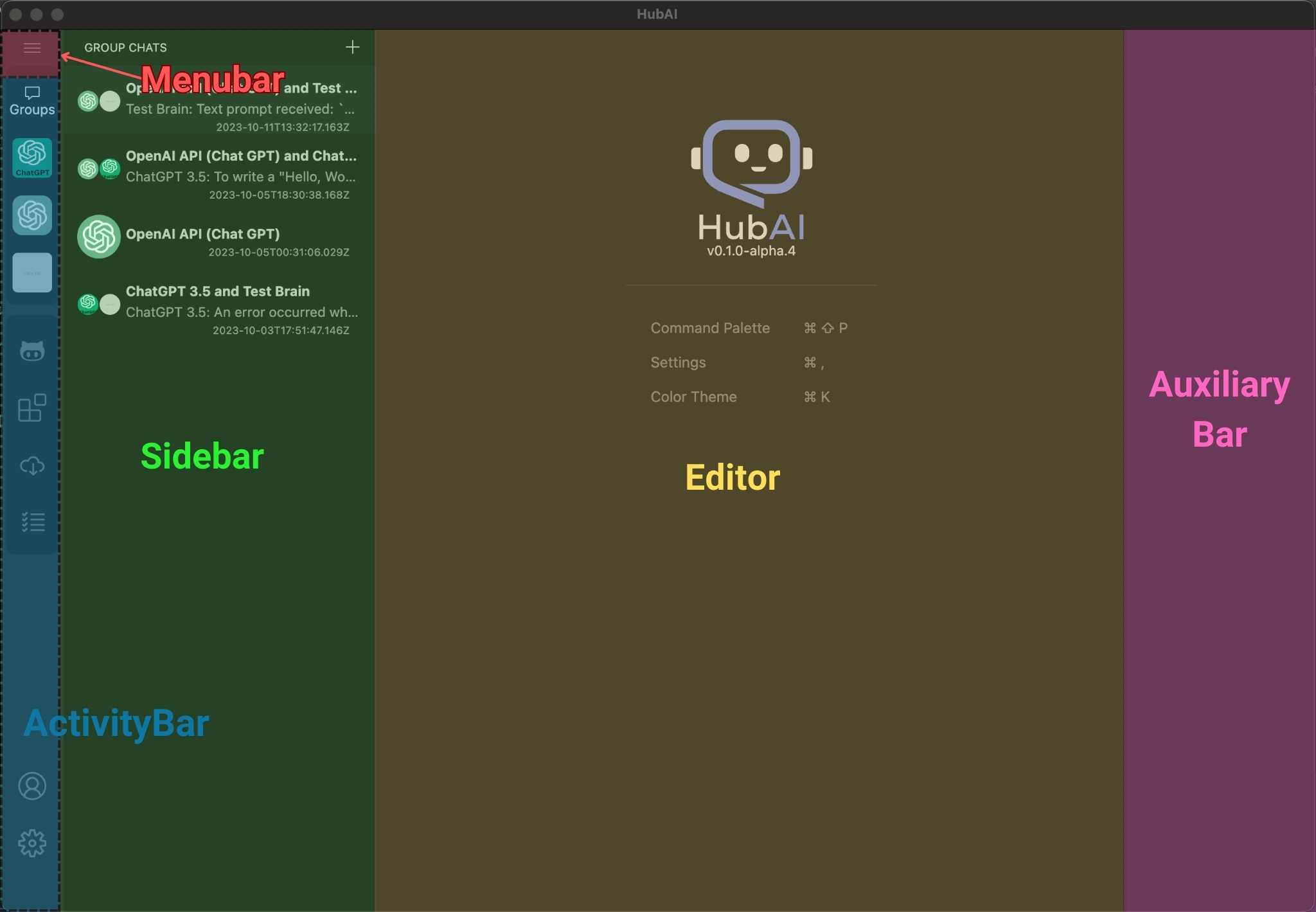

Workbench Core Components

We have a few core modules that are used by the HubAI app to provide the basic UI components and services:

  • MenuBar: Used to add new menu items to the app menu bar.
  • ActivityBar: Used to add new items to the app activity bar. The activity bar should contain the main navigation items of the app.
  • SideBar: Used to add new items to the app sidebar. The sidebar should contain the secondary navigation items of the app. It will be changed when the user clicks on an item in the activity bar, so they are related by id.
  • Editor: The editor is used to display new windows in the app. It can be used to display a new page, a new dialog, or a new panel.
  • AuxiliaryBar: It's a bar that can be used to display auxiliary information related to the selected item in the sidebar

Extending the Workbench​

We gonna use the Todo List extension as an example to show how to extend the workbench.

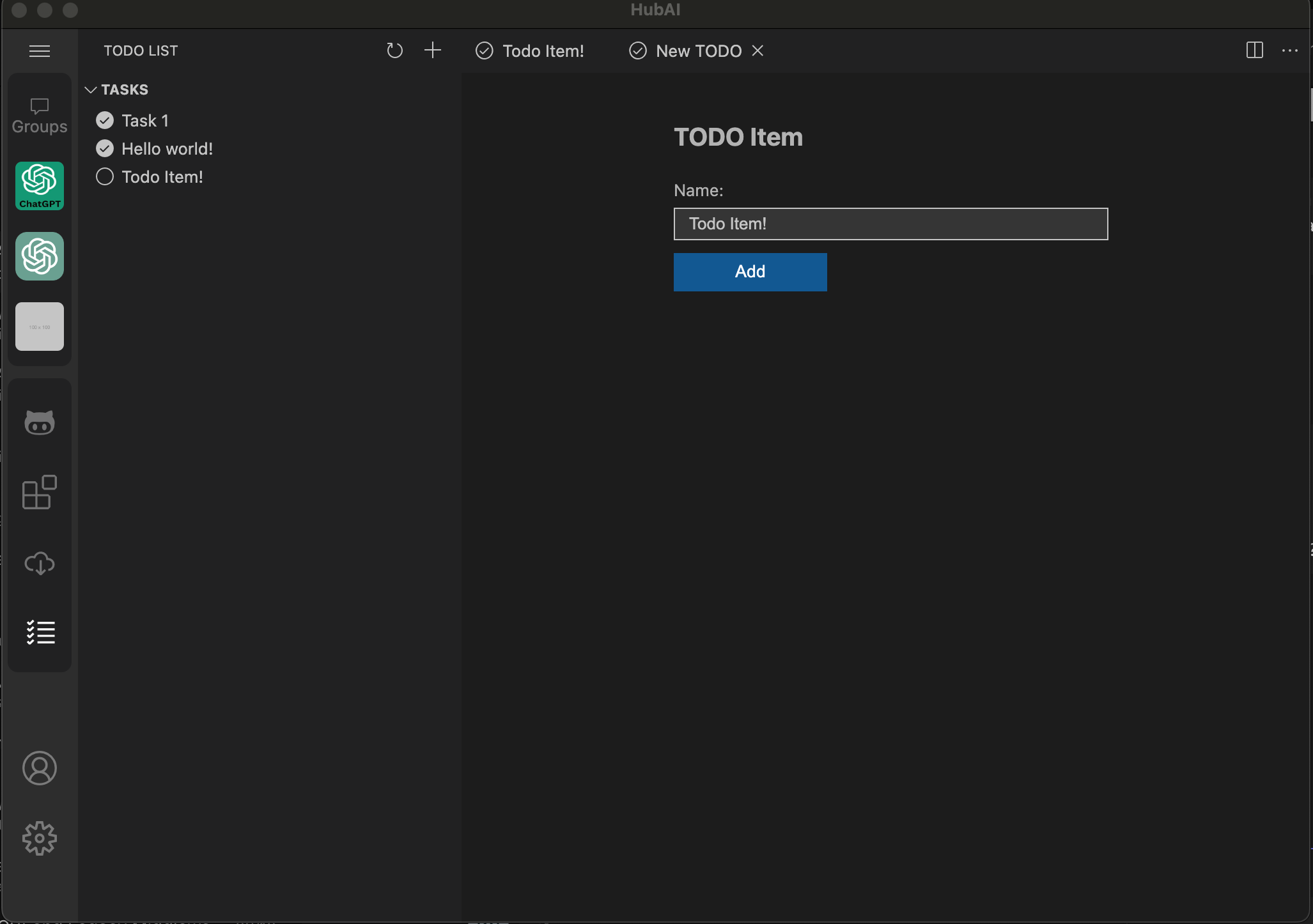

TodoList extension

This extension will extend 4 modules: MenuBar, ActivityBar, Sidebar and Editor.

Let's take a look into the extension code:

import { AppContext, IExtension, IMenuBarItem, react } from '@hubai/core';
import { TodoListExtensionController } from './controllers';
import TodoListService from './services/todoListService';
import SidebarView from './views/sidebar';

const SidebarId = 'todoList.sidebarPane';

export class TodoListExtension implements IExtension {
  id: string = 'todoList';

  name: string = 'TodoList';

  activate(context: AppContext): void {
    const service = new TodoListService();

    const controller = new TodoListExtensionController(context, service);

    const SidebarViewConnected = connect(service, SidebarView, controller);

    controller.initView();

    const sidebar = {
      id: SidebarId,
      title: 'SidebarPanel',
      render: () => <SidebarViewConnected />,
    };

    const activityBar = {
      id: SidebarId,
      name: 'TodoList',
      title: 'Todo List',
      icon: 'checklist',
    };

    const addTodoItemMenuItem: IMenuBarItem = {
      id: 'todoList.menu.addTodoItem',
      name: 'Add Item',
      icon: 'project',
    };

    // Add the sidebar and activity bar items to the app
    context.services.sidebar.add(sidebar);
    context.services.activityBar.add(activityBar);

    // Add the menu item to the app menu bar (on the File menu)
    context.services.menuBar.append(addTodoItemMenuItem, 'File');
    context.services.menuBar.forceUpdate();
  }

  dispose(context: AppContext): void {
    // Remove the sidebar and activity bar items from the app
    context.services.sidebar.remove(SidebarId);
    context.services.activityBar.remove(SidebarId);
  }
}

The sidebar is used to display the secondary navigation items of the app. It will be changed when the user clicks on an item in the activity bar, so they are related by id.

To add a new sidebar item, we need to create a new object with the following properties, and then call the add method from the ISidebarService:

const sidebar = {
  id: SidebarId,
  title: 'SidebarPanel',
  render: () => <SidebarViewConnected />,
};

context.services.sidebar.add(sidebar);

Activity Bar​

The activity bar is used to display the main navigation items of the app. It will change the sidebar when the user clicks on an item (Sidebar and activityBar item should have the same id!)

To add a new activity bar item, we need to create a new object with the following properties, and then call the add method from the IActivityBarService:

const activityBar = {
  id: SidebarId,
  name: 'TodoList',
  title: 'Todo List',
  icon: 'checklist',
};

context.services.activityBar.add(activityBar);

Check the list of available icons here

The menu bar is the main menu of the app. You can add new items to the menu bar by calling the append method from the IMenuBarService:

const addTodoItemMenuItem: IMenuBarItem = {
  id: 'todoList.menu.addTodoItem',
  name: 'Add Item',
  icon: 'project',
};

context.services.menuBar.append(addTodoItemMenuItem, 'File');

The second parameter is the menu where the item will be added.
